Find a Round Filter

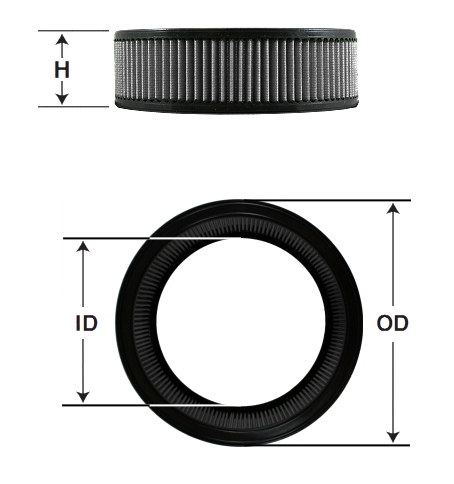

Click here for a picture showing how cone and cylinder filters are measured.
Select a filter from the list below. The list can be sorted by clicking on a column heading. Clicking the heading again will sort it in the opposite direction. The table will scroll left and right for smaller screens.
All measurements are in inches.
|
Filter Number
|
Outside Diameter (OD)
|
Inside Diameter (ID)
|
Height (H)
|
Shape
|
Color
|
|---|---|---|---|---|---|
| Green Filter Part #2011 | 12.00 | 9.84 | 3.43 | Round | Green |
| Green Filter Part #2012 | 14.00 | 12.00 | 3.00 | Round | Green |
| Green Filter Part #2030 | 14.00 | 12.00 | 4.00 | Round | Green |
| Green Filter Part #2048 | 9.65 | 8.27 | 2.75 | Round | Green |
| Green Filter Part #2052 | 9.00 | 7.68 | 2.75 | Round | Green |
| Green Filter Part #2064 | 14.00 | 12.00 | 2.31 | Round | Green |
| Green Filter Part #2071 | 14.00 | 12.00 | 5.00 | Round | Green |
| Green Filter Part #2072 | 10.00 | 8.00 | 3.68 | Round | Green |
| Green Filter Part #2073 | 12.00 | 9.81 | 2.50 | Round | Green |
| Green Filter Part #2113 | 11.00 | 8.37 | 4.92 | Round | Green |
| Green Filter Part #2121 | 12.60 | 11.00 | 2.87 | Round | Green |
| Green Filter Part #2128 | 14.00 | 12.40 | 4.00 | Round | Green |
| Green Filter Part #2131 | 12.00 | 9.81 | 5.50 | Round | Green |
| Green Filter Part #2160 | 14.00 | 12.00 | 6.00 | Round | Green |
| Green Filter Part #2177 | 10.00 | 8.66 | 2.28 | Round | Green |
| Green Filter Part #2350 | 11.00 | 9.25 | 6.00 | Round | Green |
| Green Filter Part #2351 | 13.80 | 12.20" | 4.50" | Round | Green |
| Green Filter Part #2433 | 5.00 | 4.00 | 1.88 | Round | Green |
| Green Filter Part #2440 | 6.33 | 4.96 | 2.48 | Round | Green |
| Green Filter Part #2441 | 6.33 | 4.96 | 3.38 | Round | Green |
| Green Filter Part #2453 | 14.00 | 12.38 | 2.00 | Round | Green |
| Green Filter Part #2874 | 14.00 | 12.38 | 2.00 | Round | Grey |
| Green Filter Part #2875 | 14.00 | 12.38 | 3.00 | Round | Grey |
| Green Filter Part #2876 | 14.00 | 12.38 | 4.00 | Round | Grey |
| Green Filter Part #2949 | 12.00 | 0.00 | 2.50 | Round | Grey |
| Green Filter Part #4027 | 20.79 | 18.19 | 2.00 | Oval | Red |
| Green Filter Part #4039 | 19.00 | 18.00 | 5.08 | Rectangular | Red |
| Green Filter Part #5112 | 13.00 | 11.00 | 2.50 | Round | Blue |
| Green Filter Part #5113 | 13.00 | 11.00 | 3.00 | Round | Blue |
| Green Filter Part #5121 | 13.00 | 11.00 | 4.00 | Round | Blue |
| Green Filter Part #7043 | 14.00 | 12.00 | 3.50 | Round | TBA |
| Green Filter Part #7045 | 11.00 | 0.00 | 4.00 | Round | TBA |
| Green Filter Part #7113 | 16.25 | 14.50 | 7.00 | Round | Green |
| Green Filter Part #7196 | 11.62 | 9.50 | 6.00 | Oval | Green |
| Green Filter Part #7198 | 5.38 | 3.75 | 3.19 | Round | Green |
| Green Filter Part #7334 | 6.90 | 5.90 | 3.10 | Oval | Green |
| Green Filter Part #7382 | 0.00 | 4.88 | Round | Green | |
| Green Filter- Part # 7413 | 2.00" | 1.06" | 1.06" | Green | |
| Green Filter Part #7465 | 12.00 | 12.00 | 2.25 | oval | Green |
| Green Filter Part #7466 | 12.00 | 12.00 | 3.25 | oval | Green |
